FORSTHOFF - hand-held welding torches
Professional hand welding device FORSTHOFF has very nice ergonomic design, low weight and high performance, which allows professional and high quality weldings. Collector carbons are very durable and the carbon brushes are equiped with a shut-down feature, preventing engine damage. Alternatively can be supplied in version without carbons.
Several types of welding nozzles and additional accessories are available for those hand welding devices.

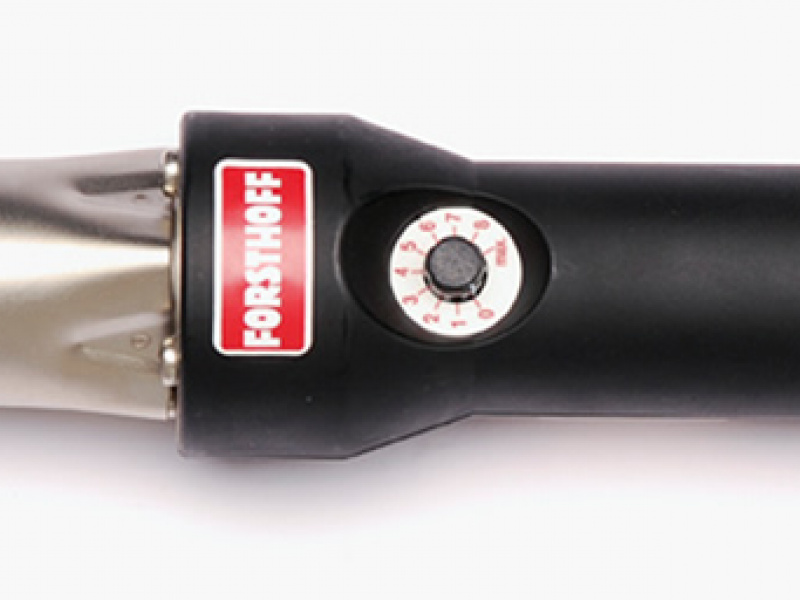

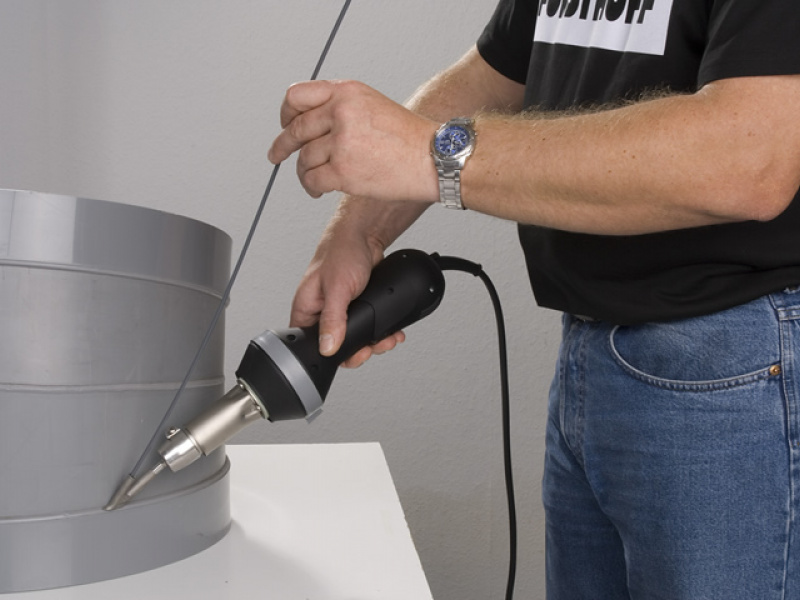

| Machine type | MINI-Electronic | QIUCK-S-Electronic | QUICK-L | ROBUST-L | HOT-AIR S |
| Technical specification | |||||
| Air flow (l/min) | 80 - 250 | 300 | 300 | 300 | 450 |
| Air source | external | ||||
| Fan electric motor | commutator | commutator | commutator | commutator | |
| Temperature regulation | electronic | electronic | 2-stage | electronic | |
| Temperature range (°C) | 20 - 700 | 20-700 | 700 | 700 | 20 - 700 |
| Heating element power output (W) | 1500 | 1500 | 1500 | 1500 | 3000 |
| Power voltage (V) | 120 alebo 230 | 120 alebo 230 | 120 alebo 230 | 120 alebo 230 | 120 alebo 230 |
| Noisiness (dB) | - | ˂ 70 | ˂ 70 | ˂ 70 | ˂ 70 |
| Plug-in cable (m) | 3 | 3 | 3 | 3 | 3 |
| Weight (kg) | 0,4 | 1,2 | 1,2 | 1,2 | 1,4 |
| Machine type | TUBE-H | TUBE-Q | VENTO-H | VENTO-Q |
| Technical specification | ||||
| Air flow (l/min) | 500 | 400 | 500 | 400 |
| Air source | ||||
| Fan electric motor | commutator* | commutator* | brushless | brushless |
| Temperature regulation | electronic | electronic | electronic | electronic |
| Temperature range (°C) | 20 - 700 | 20 - 700 | 20 - 700 | 20 - 700 |
| Heating element power output (W) | 3000 | 1500 | 3000 | 1500 |
| Power voltage (V) | 120 alebo 230 | 120 alebo 230 | 230 | 230 |
| Noisiness (dB) | ˂ 70 | ˂ 70 | ˂ 70 | ˂ 70 |
| Plug-in cable (m) | 3 | 3 | 3 | 3 |
| Weight (kg) | 1,5 | 1,4 | 1,5 | 1,4 |
* carbons extended lifetime up to 1500 working hours
Hihg power hand fan for hand welding device MINI-Electronic
| Machine type | TUBE-HB | VENTO-HB |
| Technical specification | ||
| Air flow (l/min) | 600 | 450 |
| Fan electric motor | commutator | brushless |
| Power voltage (V) | 120 alebo 230 | 230 |
| Noisiness (dB) | ˂ 70 | ˂ 70 |
| Plug-in cable (m) | 3 | 3 |
| Weight (kg) | 1,0 | 1,0 |
