MUNSCH - pätky k extrúderom

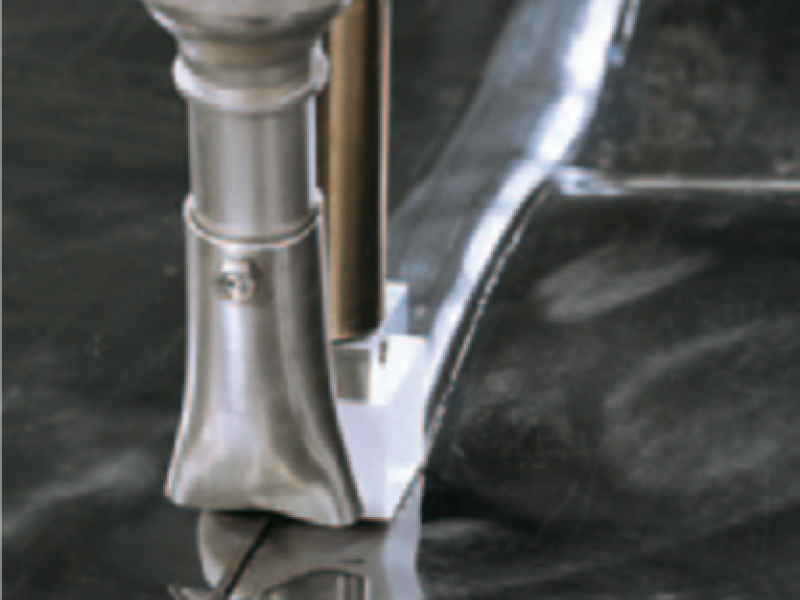

K extrúderom MUNSCH je dodávaný široký sortiment zváracích pätiek pre optimalizáciu zvarového spoja.

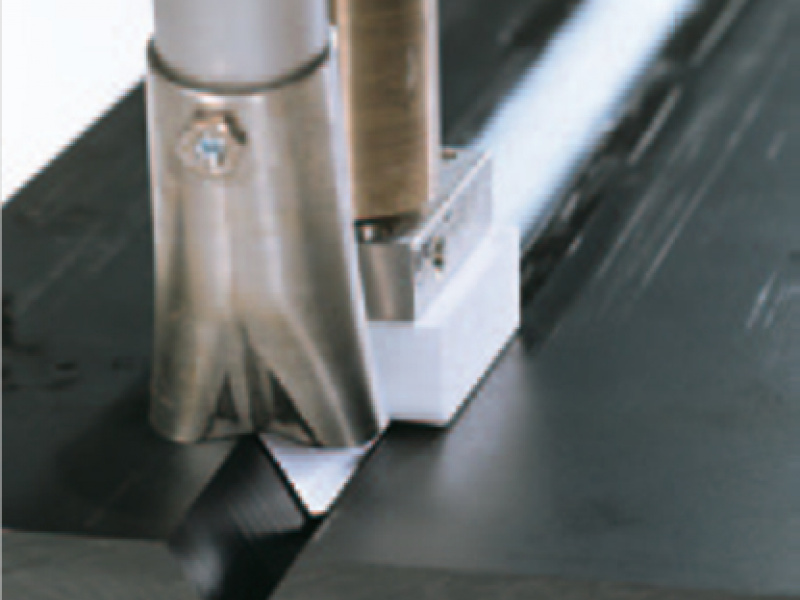

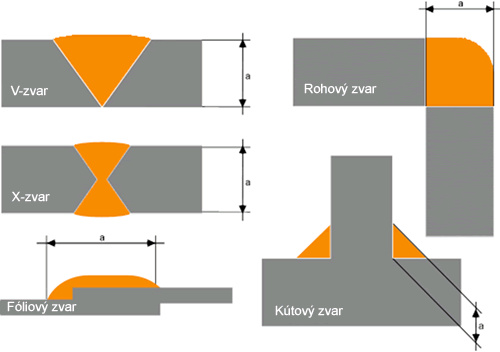

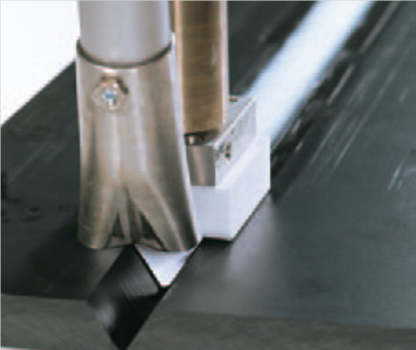

Zváracie pätky pre V-zvar a X-zvar
|
Rozmer "a" |
Dĺžka pätky |
Obj. číslo |
|
Typ extrúdera: |
MEK-/ MAK-18-S; MEK-/ MAK-18; MEK-/ MAK-25-S; MEK-/ MAK-25; Mini; ME- MA-25-S; ME-/MA-25 |
|
5 mm |
40 / 60 mm |
MU 42-0105 V |
|
6 mm |
40 / 60 mm |
MU 42-0106 V |
|
8 mm |
40 / 60 mm |
MU 42-0108 V |
|
10 mm |
40 / 60 mm |
MU 42-0110 V |
|
12 mm |
40 / 60 mm |
MU 42-0112 V |
|
15 mm |
40 / 60 mm |
MU 42-0115 V |
|
Rozmer "a" |
Dĺžka pätky |
Obj.číslo |
|
Typ extrúdera: |
MEK-/ MAK 32; MAK 32 S; MEK-/MAK-36; MEK-/ MAK-40; MAK 48; MEK-/ MAK-58; MEK-/ MAK-65;
ME-/MA-40; ME-/MA-60 |
|
8 mm |
40 / 60 / 80 mm |
MU 43-0108 V |
|
10 mm |
40 / 60 / 80 mm |
MU 43-0110 V |
|
15 mm |
40 / 60 / 80 mm |
MU 43-0115 V |
|
20 mm |
40 / 60 / 80 mm |
MU 43-0120 V |
|
25 mm |
40 / 60 / 80 mm |
MU 43-0125 V |

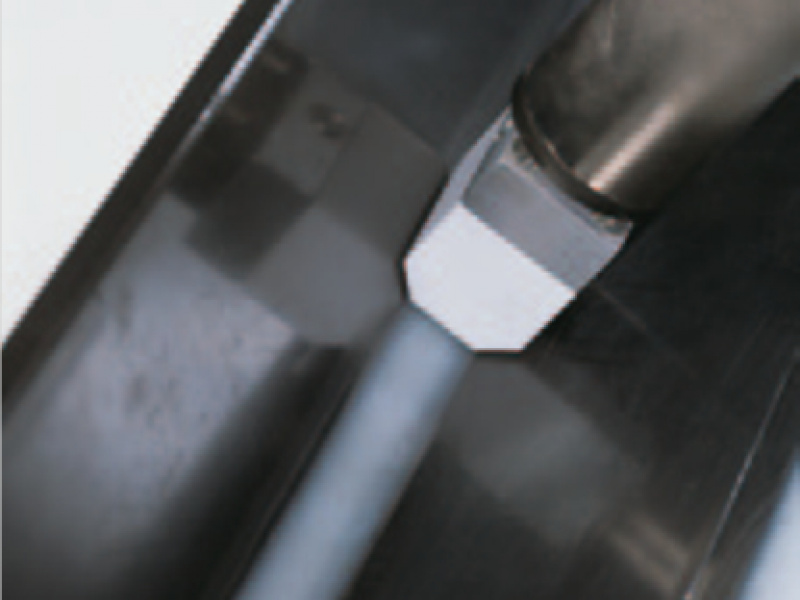

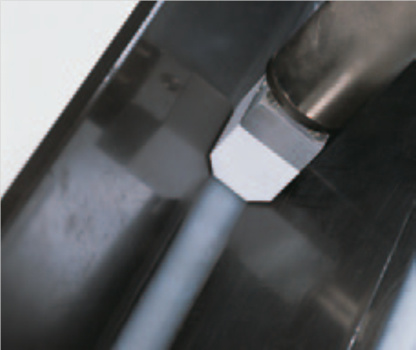

Zváracie pätky pre kútový zvar
|
Rozmer "a" |
Dĺžka pätky |
Obj.číslo |
|
Typ extrúdera: |
MEK-/ MAK-18-S; MEK-/ MAK-18; MEK-/ MAK-25-S; MEK-/ MAK-25; Mini; ME- MA-25-S; ME-/MA-25 |
|
4 mm |
40 / 60 mm |
MU 42-0104 K |
|
6 mm |
40 / 60 mm |
MU 42-0106 K |
|
7 mm |
40 / 60 mm |
MU 42-0107 K |
|
9 mm |
40 / 60 mm |
MU 42-0109 K |
|
11 mm |
40 / 60 mm |
MU 42-0111 K |
|
Rozmer "a" |
Dĺžka pätky |
Obj.číslo |
|
Typ extrúdera: |
MEK-/ MAK 32; MAK 32 S; MEK-/MAK-36; MEK-/ MAK-40; MAK 48; MEK-/ MAK-58; MEK-/ MAK-65;
ME-/MA-40; ME-/MA-60 |
|
6 mm |
40 / 60 / 80 mm |
MU 43-0106 K |
|
7 mm |
40 / 60 / 80 mm |
MU 43-0107 K |
|
8 mm |
40 / 60 / 80 mm |
MU 43-0108 K |
|
11 mm |
40 / 60 / 80 mm |
MU 43-0111 K |
|
14 mm |
40 / 60 / 80 mm |
MU 43-0114 K |
|
18 mm |
40 / 60 / 80 mm |
MU 43-0118 K |
|
21 mm |
40 / 60 / 80 mm |
MU 43-0121 K |
|
28 mm |
40 / 60 / 80 mm |
MU 43-0128 K |

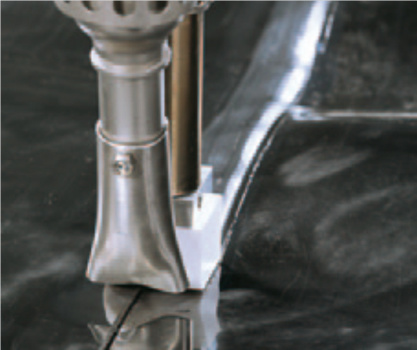

Zváracie pätky pre fóliový zvar
|
Rozmer "a" |
Dĺžka pätky |
Obj.číslo |
|
Typ extrúdera: |
MEK-/ MAK-18-S; MEK-/ MAK-18; MEK-/ MAK-25-S; MEK-/ MAK-25; Mini; ME- MA-25-S; ME-/MA-25 |
|
20 mm |
40 / 60 mm |
MU 42-0120 F |
|
25 mm |
40 / 60 mm |
MU 42-0125 F |
|
30 mm |
40 / 60 mm |
MU 42-0130 F |
|
40 mm |
40 / 60 mm |
MU 42-0140 F |
|
Rozmer "a" |
Dĺžka pätky |
Obj.číslo |
|
Typ extrúdera: |
MEK-/ MAK 32; MAK 32 S; MEK-/MAK-36; MEK-/ MAK-40; MAK 48; MEK-/ MAK-58; MEK-/ MAK-65; |
|
25 mm |
50 mm |
MU 43-0125 F |
|
40 mm |
50 mm |
MU 43-0140 F |

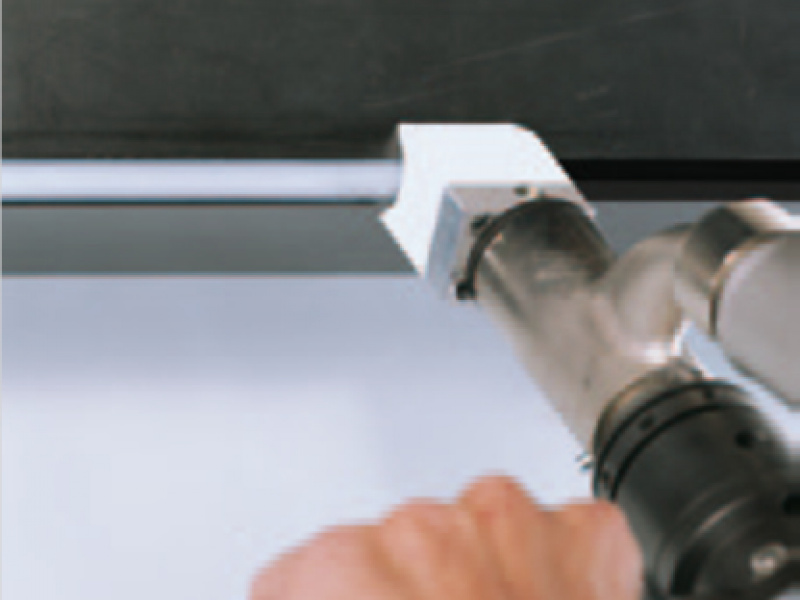

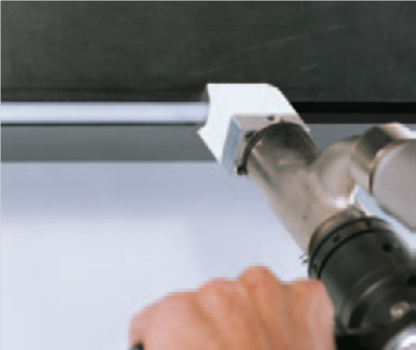

Zváracie pätky pre rohový zvar
|
Rozmer "a" |
Dĺžka pätky |
Obj.číslo |
|
Typ extrúdera: |
MEK-/ MAK-18-S; MEK-/ MAK-18; MEK-/ MAK-25-S; MEK-/ MAK-25; Mini; ME- MA-25-S; ME-/MA-25 |
|
4 mm |
40 / 60 mm |
MU 42-0104 E |
|
5 mm |
40 / 60 mm |
MU 42-0105 E |
|
6 mm |
40 / 60 mm |
MU 42-0106 E |
|
8 mm |
40 / 60 mm |
MU 42-0108 E |
|
10 mm |
40 / 60 mm |
MU 42-0110 E |
|
12 mm |
40 / 60 mm |
MU 42-0112 E |
|
Rozmer "a" |
Dĺžka pätky |
Obj.číslo |
|
Typ extrúdera: |
MEK-/ MAK 32; MAK 32 S; MEK-/MAK-36; MEK-/ MAK-40; MAK 48; MEK-/ MAK-58; MEK-/ MAK-65;
ME-/MA-40; ME-/MA-60 |
|
6 mm |
40 / 60 / 80 mm |
MU 43-0106 E |
|
8 mm |
40 / 60 / 80 mm |
MU 43-0108 E |
|
10 mm |
40 / 60 / 80 mm |
MU 43-0110 E |
|
12 mm |
40 / 60 / 80 mm |
MU 43-0112 E |
|
15 mm |
40 / 60 / 80 mm |
MU 43-0115 E |
|
20 mm |
40 / 60 / 80 mm |
MU 43-0120 E |
|
25 mm |
40 / 60 / 80 mm |
MU 43-0125 E |
