Pipe squeezing devices
In case of pipeline distribution damage repair, is necessary to interrupt the medium flow through the point of damage. For this purpose, by reparation of plastic pipelines, the pipe squeezing devices can be used. The pipe is squeezed before (if needed even after) the point of damage. When the pipe is repaired, squeezing device is released and plastic pipe is returned to its previous shape by using the rounding device. Squeezing point on the pipeline must be marked, because squeezing process can be realized only once at the same place.
Pipe squeezing devices:
- QR 32 - combined squeezing and rounding device for pipe diameter from DA 20 to DA 32 mm; with mechanical shift by means of threaded spindle and freewheeling ratchet

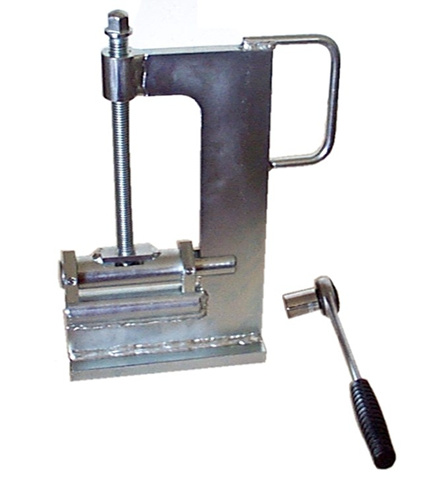

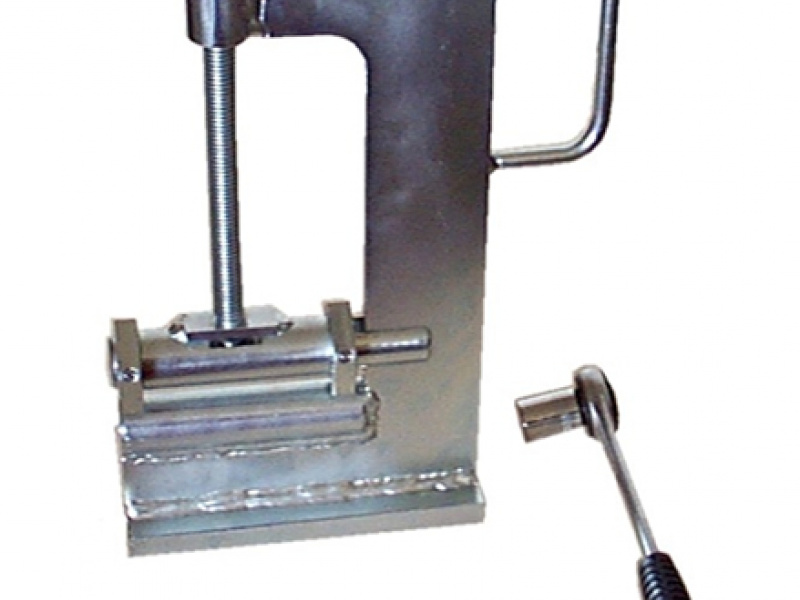

- QR 63 - combined squeezing and rounding device for pipe diameter from DA 32 to DA 63 mm; with mechanical shift by means of threaded spindle and freewheeling ratchet

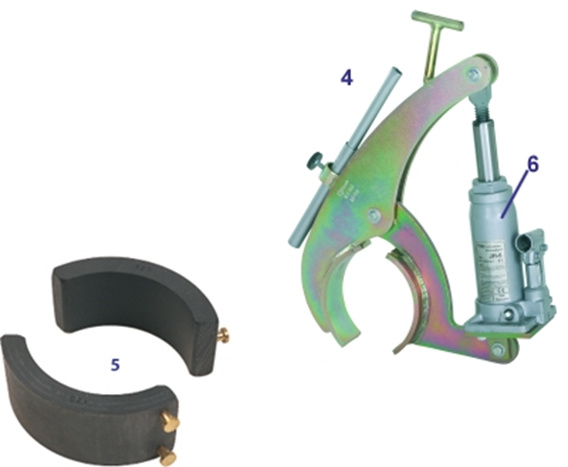

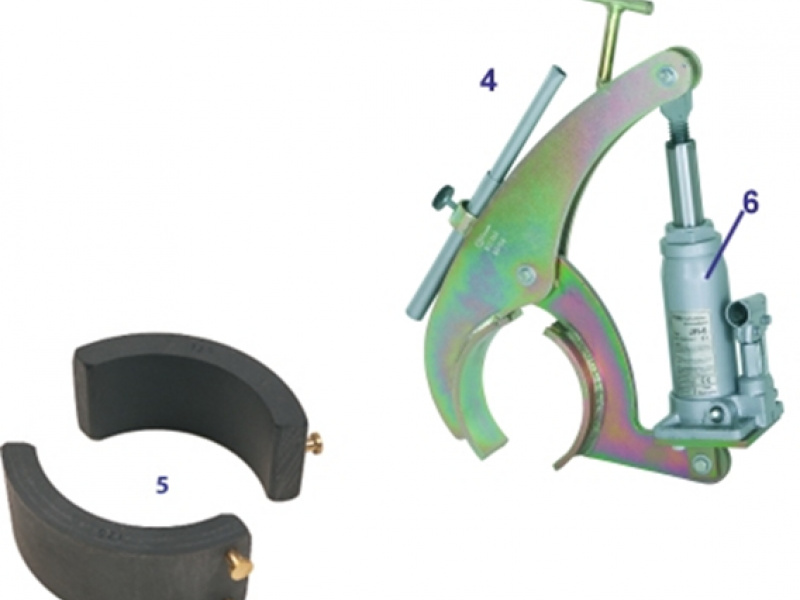

- QR 110 - individual squeezing and rounding device for pipe diameter from DA 32 to DA 110 mm; with hydraulic shift on squeezing and rounding device

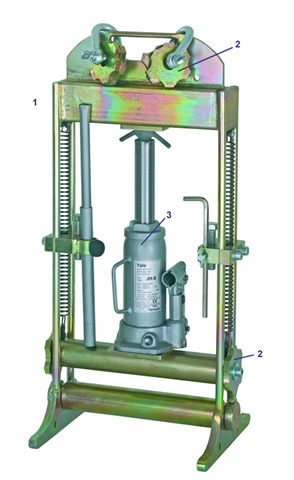

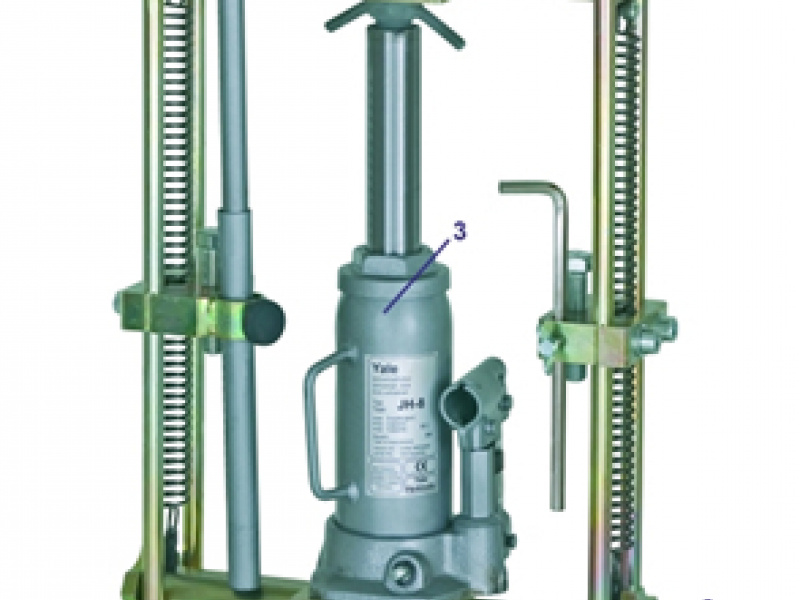

- QR 160 - individual squeezing and rounding device for pipe diameter from DA 63 to DA 160 mm; with hydraulic shift on squeezing and rounding device
- QR 225 - individual squeezing and rounding device for pipe diameter from DA 125 to DA 225 mm; with hydraulic shift on squeezing and rounding device
- QR 250 - individual squeezing and rounding device for pipe diameter from DA 160 to DA 250 mm; with hydraulic shift on squeezing and rounding device
