Positioners POSIPLAST/PROLINE

Clamping tools (positioners) are used for fixate welding pipe ends by electro-fusion welding, mainly by welding of winding pipes.

Positioners with clamping rings:

• POSIPLAST 5063 - 3-way connection: for pipe diameters 40-50-63 mm (straight base 1250 mm, branch leg 750 mm)

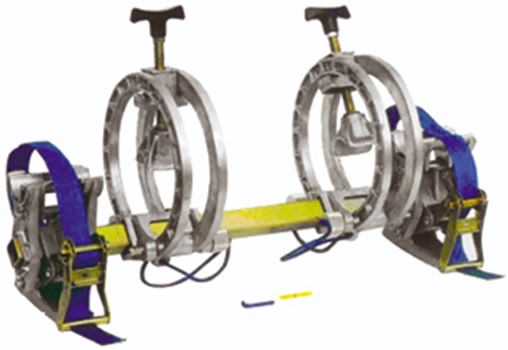

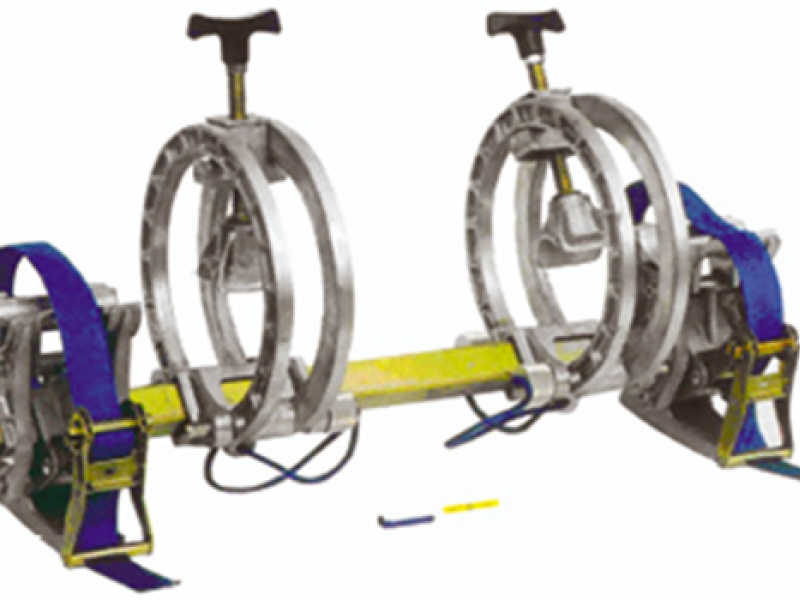

• POSIPLAST 5063 - 2-way connection: for pipe diameters 40-50-63 mm (straight base 1250 mm)
• POSIPLAST 5125 - 3-way connection: for pipe diameters 63-75-90-110-125 (straight base 1270 mm, branch leg 800 mm)
• POSIPLAST 5125 - 2-way connection: for pipe diameters 63-75-90-110-125 (straight base 1600 mm)

Positioners with clamping jaws and straps:

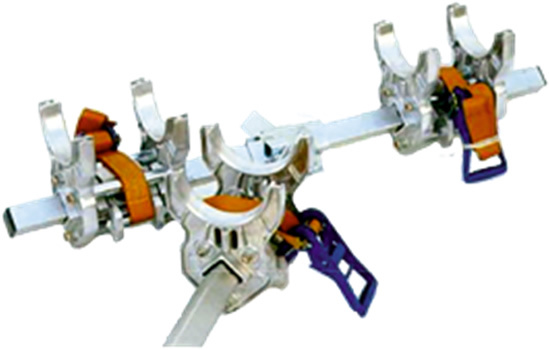

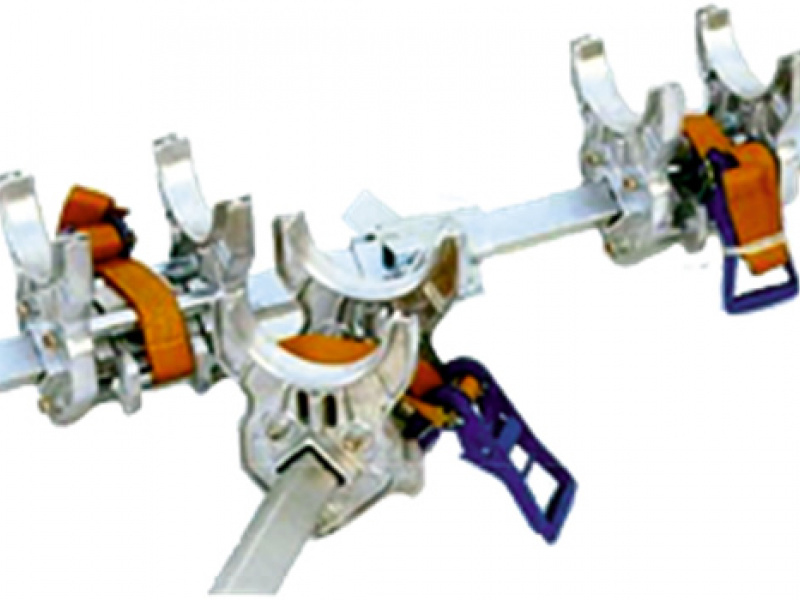

• POSIPLAST 3160 - 3-way connection: for pipe diameters 63-75-90-110-125-160 (straight base 1270 mm, branch leg 900 mm)
• POSIPLAST 3160 - 2-way connection: for pipe diameters 63-75-90-110-125-160 (straight base 1270 mm)

Positioners with quadrilateral clamping:

• POSIPLAST 4110 - 3-way connection: for pipe diameters 40-63-90-110 (straight base 1200 mm, branch leg 600 mm)
• POSIPLAST 4110 - 2-way connection: for pipe diameters 40-63-90-110 (straight base 1200 mm)

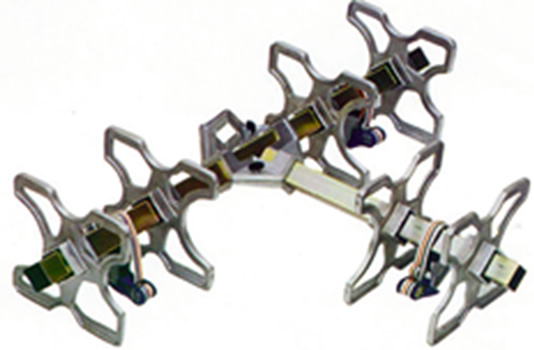

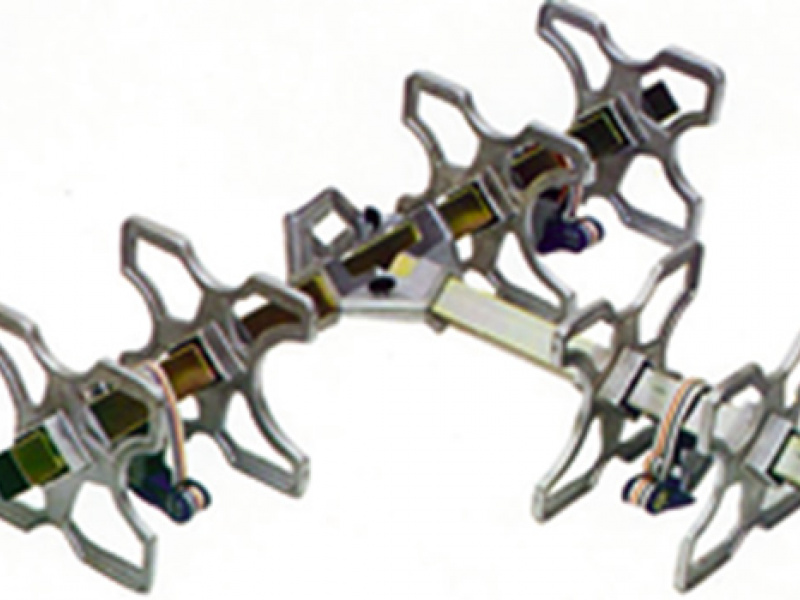

• POSIPLAST 4125 - 3-way connection: for pipe diameters 40-63-90-125 (straight base 1200 mm, branch leg 600 mm)
• POSIPLAST 4125 - 2-way connection: for pipe diameters 40-63-90-125 (straight base 1200 mm)
• POSIPLAST 4160 - 3-way connection: for pipe diameters 63-90-110-160 (straight base 1500 mm, branch leg 700 mm)
• POSIPLAST 4160 - 2-way connection: for pipe diameters 63-90-110-160 (straight base 1500 mm)
• POSIPLAST 4200 - 3-way connection: for pipe diameters 125-160-180-200 (straight base 1500 mm, branch leg 700 mm)
• POSIPLAST 4200 - 2-way connection: for pipe diameters 125-160-180-200 (straight base 1500 mm)

Positioners for angle welding:

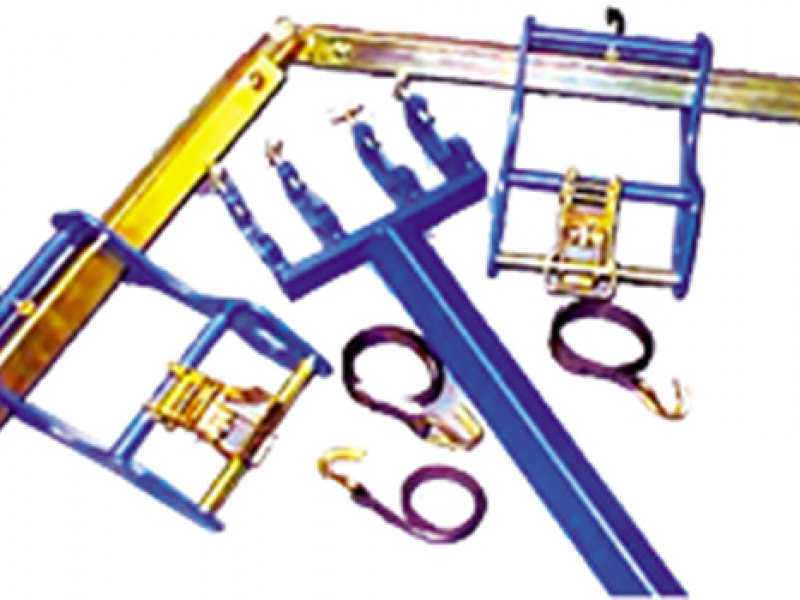

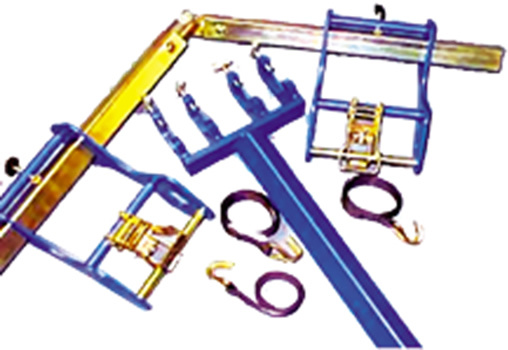

• PROLINE K 63/250 - 3-way connection: for pipe diameters 63-250 (with adjustable angle maker joint)
• PROLINE K 125/500 - 3-way connection: for pipe diameters 125-500 (with adjustable angle maker joint)
• PROLINE 20/63 - 2-way connection: for pipe diameters 20-63 (for welding by 90° angle)
• PROLINE 20/63 - 3-way connection: for pipe diameters 20-63 (for welding by 90° angle)

Posiioners for T-shaped pieces:

• POSIPLAST P9000 - universal positioner for T-shaped pieces: for mainline pipe diameters 40-200 and derivation pipe diameters 20-63
