Sawing systems
Bandsaws WIDOS RS:
- WIDOS RS 315 - for pipe diameter up to DA 315 mm, exact cut with cutting angle capacities 45° - 0° - 67,5°
- WIDOS RS 630 - for pipe diameter up to DA 630 mm, exact cut with cutting angle capacities 45° - 0° - 67,5°
- WIDOS RS 800 - for pipe diameter up to DA 800 mm, exact cut with cutting angle capacities 45° - 0° - 67,5°
- WIDOS RS 1000 - for pipe diameter up to DA 1000 mm, exact cut with cutting angle capacities 45° - 0° - 67,5°
- WIDOS RS 1200 - for pipe diameter up to DA 1200 mm, exact cut with cutting angle capacities 45° - 0° - 67,5°
- WIDOS RS 1600 - for pipe diameter up to DA 1600 mm, exact cut with cutting angle capacities 45° - 0° - 67,5°

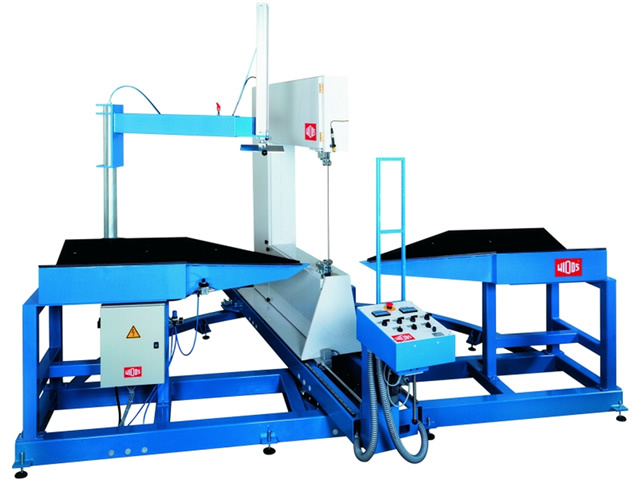

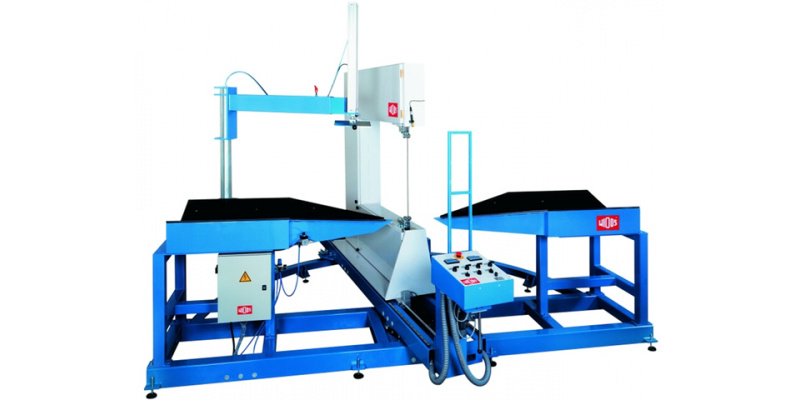

The extremely solid saw bow is optimized for a low vibration and belt sparing operation and is driven by hand wheel on precise linear guides. The band drive with high torque performance is equipped with a break so that any after-running after switching off or after pushing the emergency-stop button is avoided. The forward feed is secured against saw forces being too high by means of a safety clutch and totally insensitive to the produced cuttings. The complete forward feed unit is mounted on a high loadable live ring and can easily be turned manually by 45° or 67,5° when being unlocked. The band position and the set angle are displayed on digital devices which can be adjusted to zero very easily by means of pneumatic centering devices.
The pipe supports have an extremely solid design and are 1,8 m long on each side so that even heaviest pieces can be clamped safely and displaced on the exchangeable sliding coatings with minimal expenditure of force. Extensions for the pipe supports are available as option. The pipes are clamped by means of a clamping belt over the complete area to be worked, an initial adjusting to the pipe dimension is not necessary. When using an optional transverse support in connection with an integrated turning of the band and a digital display and locking of the position, a negative radial cut for the fabrication of reduced branches at T- and Y- pieces can be easily performed. Due to the solid base of the complete installation, assembling works in the workshop become unnecessary, only the horizontal adjustment by means of adjusting screws has to be carried out.
