WIDOS 2500

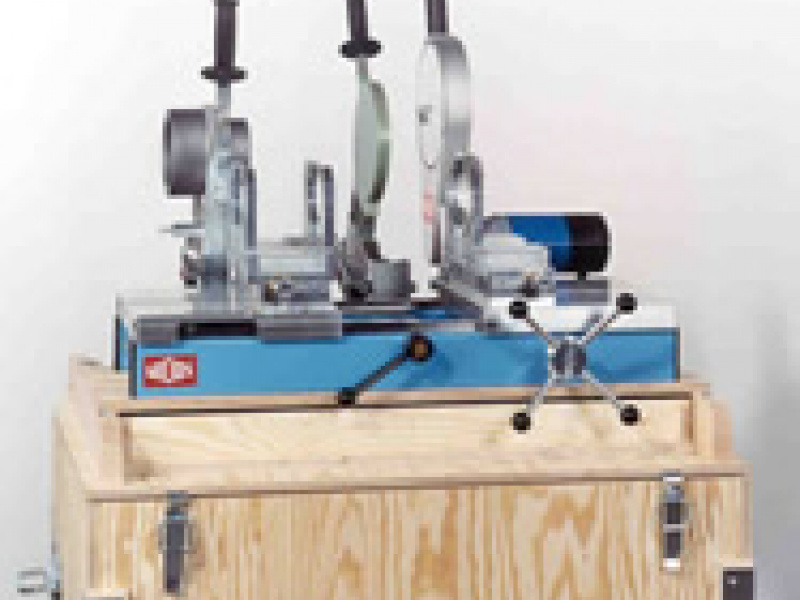

Workshop but welding machines for pipe and fittings weldings from PE, PP and PVDF of diameters from DA 50 to DA 315 mm, with mechanical shift of clamping tools. Available in 3 sizes - for diameters up to DA 160 mm, up to DA 250 mm and up to DA315 mm. Also available in version WIDOS 2500 Kombi - which is combined machine suitable for but welding and also for polyfusion welding. Clamping tools can swivel about 15° for segmented bends welding. Transport case, which can be used also as a machine pedestal, allows very easy transport of welding unit.
| Machine type |
WIDOS 2500/160 |
WIDOS 2500/250 |
WIDOS 2500/315 |
WIDOS 2500T |
WIDOS 2500T 45/60 |
WIDOS 2500Kombi |
| Range in mm | 50 - 160 | 50 - 250 | 50 - 315 | 50 - 180 | 50 - 180 | 20 - 160 |
| Basic machine | ||||||
| Hydraulic power unit | ||||||
| Electrical planer | ||||||
| Heating element | ||||||
| CNC or SPA unit | ||||||
| Transport case | ||||||
| Reducer inserts | ||||||
| Reducer inserts DA 20 | ||||||
| Reducer inserts DA 25 | ||||||
| Reducer inserts DA 32 | ||||||
| Reducer inserts DA 40 | ||||||
| Reducer inserts DA 50 | ||||||
| Reducer inserts DA 56 | optional | optional | optional | optional | optional | optional |
| Reducer inserts DA 63 | ||||||
| Reducer inserts DA 75 | ||||||
| Reducer inserts DA 90 | ||||||
| Reducer inserts DA 110 | ||||||
| Reducer inserts DA 125 | ||||||
| Reducer inserts DA 140 | ||||||
| Reducer inserts DA 160 | basic clamping tools | basic clamping tools | ||||
| Reducer inserts DA 180 | basic clamping tools | basic clamping tools | ||||
| Reducer inserts DA 200 | ||||||
| Reducer inserts DA 225 | ||||||
| Reducer inserts DA 250 | basic clamping tools | |||||
| Reducer inserts DA 280 | ||||||
| Reducer inserts DA 315 | basic clamping tools | |||||
| Accessories | ||||||
| Set of poly-fusion embouchures | ||||||
* an extension component for fabrication of welded 45°, 60° a 90° T-pieces (for dimension up to DA 180) is available

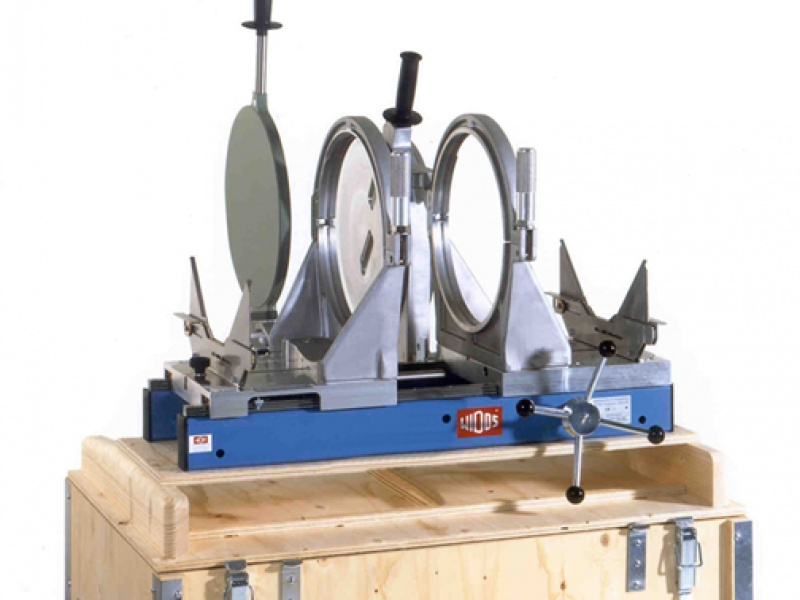

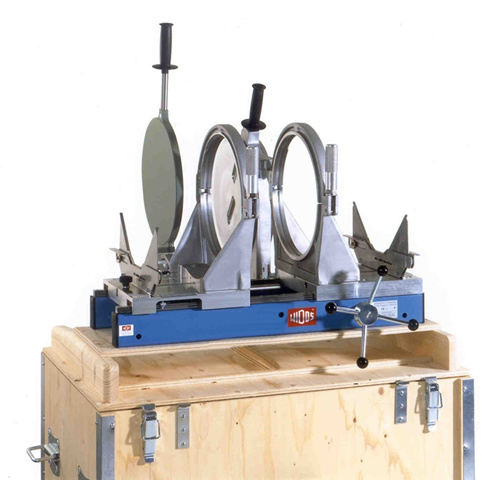

Handy and mobile plastic welding machine for PE, PP, PVDF and PB for the use in the workshop and on the building site. Particularly suitable for sanitary installations and wastepipes. The diameters are selectable from OD 50 to OD 160 mm, OD 50 to OD 250 mm and OD 50 to OD 315 mm.
Machine with electrically operated planer, electronical heating element, basic clamping tool divided into two parts (except for OD 160 mm), each side swivelling up to 15° with clamping inserts and pipe support as well as a transport and mounting crate for a safe, clean and protected storage. If desired there is a combined butt/socket plastic welding machine available.
