WIDOS 5000 WM/5000 WS CNC

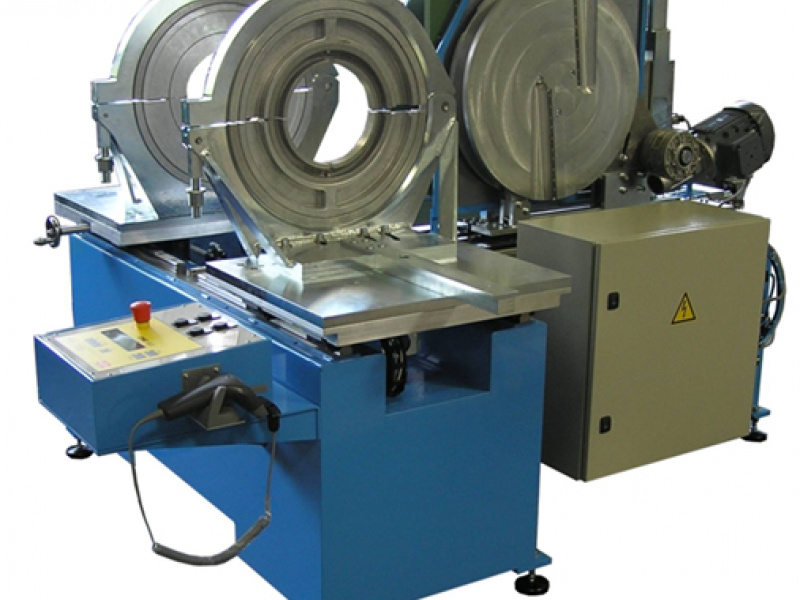

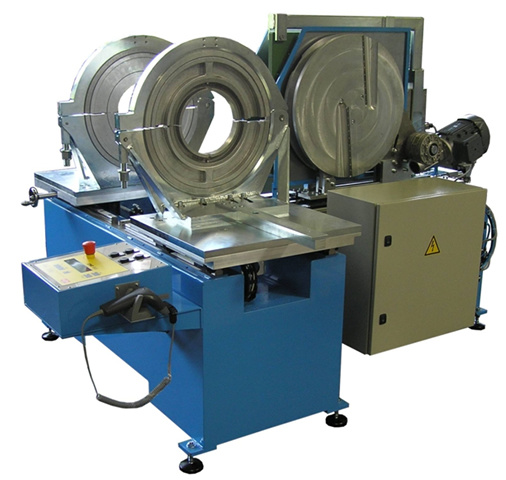

Workshop devices for butt welding of pipes and fittings from PE, PP and PVDF for diameters from DA 160 to DA 500 mm, with hydraulic shift of clamping tool. Welding unit is mounted on the massive base frame, with two movable welding tables on it . Alternatively can be supplied with SPA protocol unit, or CNC control unit. Clamping tools can swivel about 15°, or 22,5° for segmented bends or T-pieces welding.

* an extension component for fabrication of welded 45°, 60° a 90° T-pieces (for dimension up to DA 500) is available

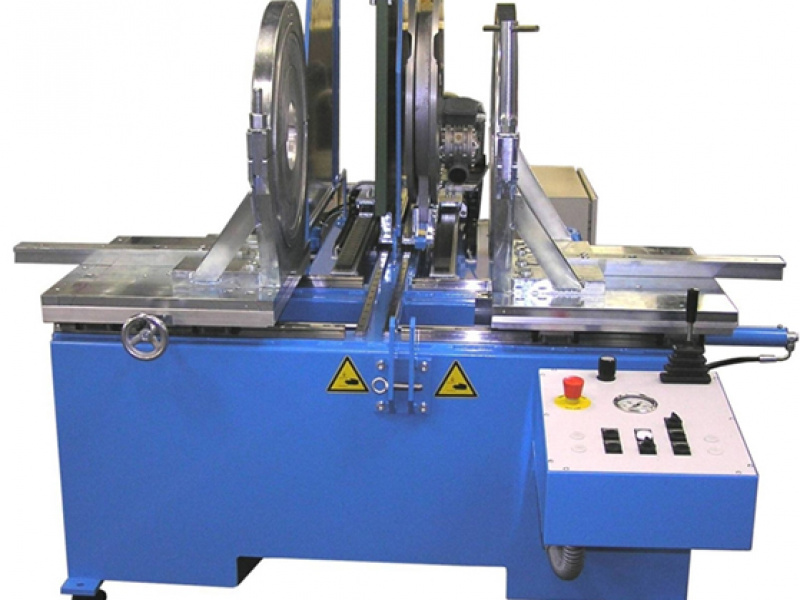

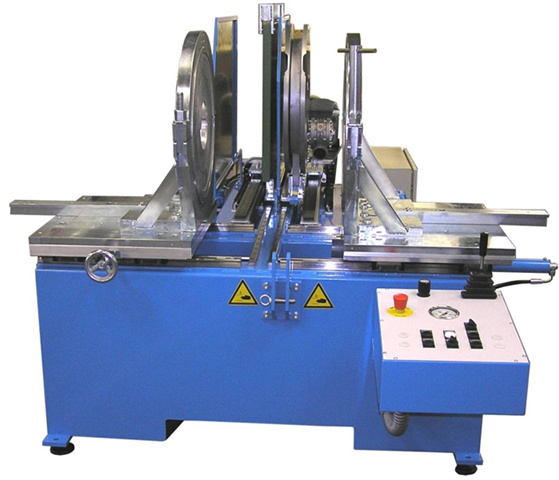

Manual plastic welding machine for heating element butt welding of PE, PP and PVDF pipes from OD 160 up to OD 500 and for the rational fabrication of fittings, bends and T- and cross-pieces of the highest quality in the workshop. The welding machine is mounted on an extremely solid and torsion-resistant basic frame and has two movable machine tables running on precise guiding units highly capable of bearing. The table drive allowing exactly controllable forces at smooth running is constructed in an ideal way with respect to the demands of the plastics processing. The floating fixation of the tables enables a very solid suspension of heating element and planer. Both are retracted pneumatically between the basic clamping tools by means of high quality linear guidings and meet highest demands on quality and service life.

The clamping devices which have been optimized in handling and stability are mounted swivellingly onto the tables for the fabrication of fittings and may be shifted horizontally for an easy mismatch compensation. Vertical compensating motions are available upon request. Besides the solid versions of 15° resp. 22,5° which are principally used for the fabrication of segmented bends, small steel versions are available for the clamping of even the smallest straight stubs of the fittings like e.g. flanges. The welding pieces are clamped manually via spindles in the standard version and may be optionally supplemented by hydraulic systems. The anti-stick coated heating element has an electronical temperature control and meets highest requirements on service life and distribution of the temperature. The electric planer with chain drive in a closed housing with high torque performance has been optimized in its high cutting performance while running smoothly.
