WIDOS MH

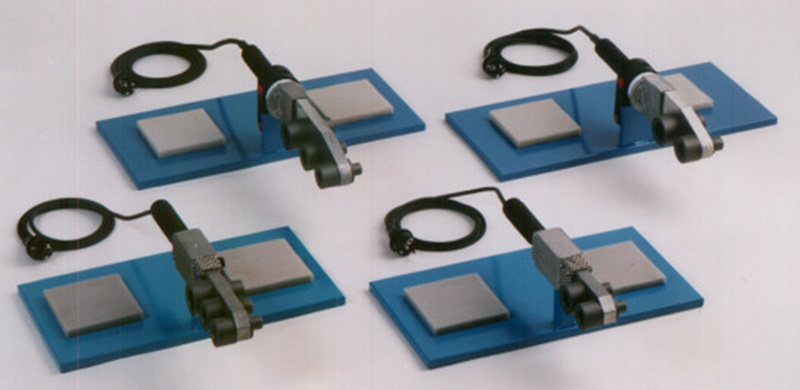

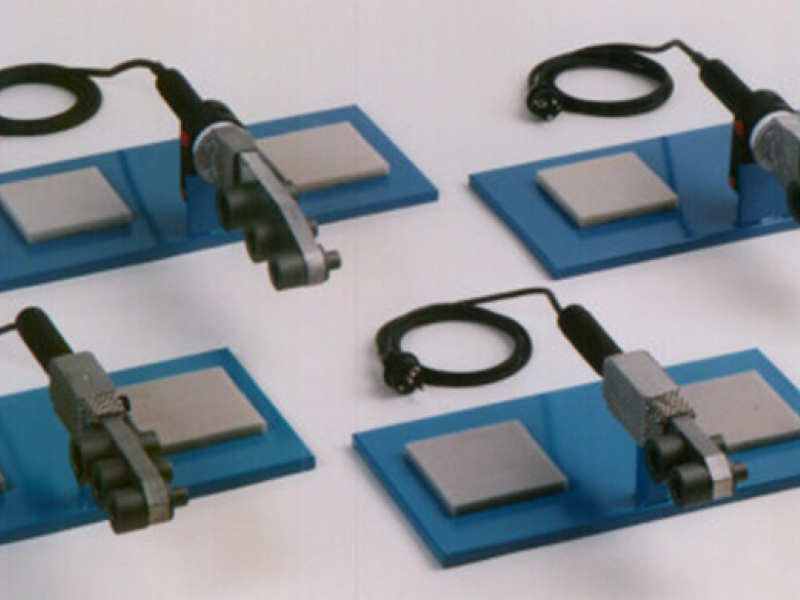

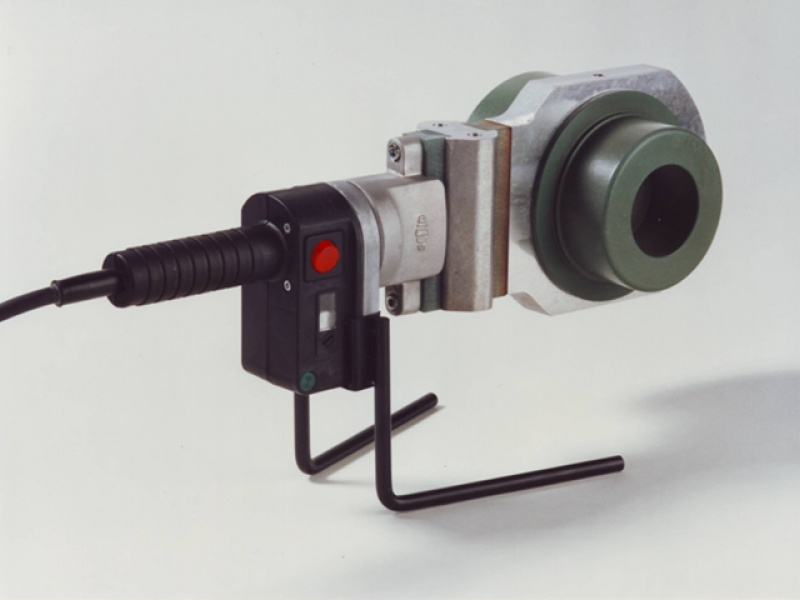

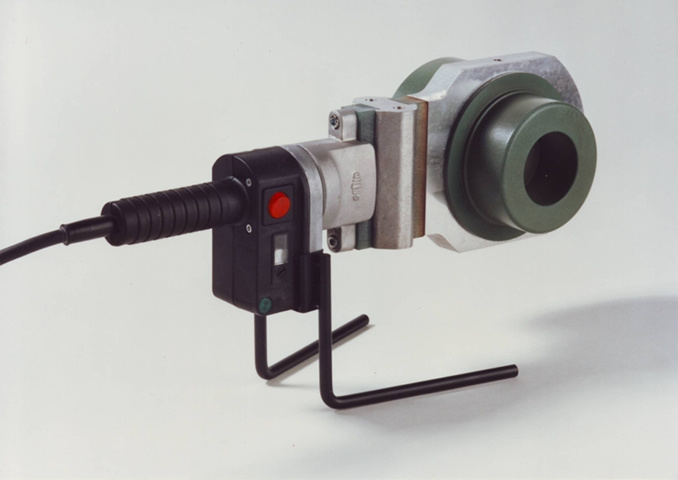

WIDOS MH are manual heating elements for poly-fusion welding of pipes and fittings from PE, PP, PB and PVDF for diameters from DA 16 to DA 125 mm. These elements are equiped with electronic or thermostatic teperature regulation, control lamps for connection to a network, warming up indicator light, switch and plug-in cable. Heating sleeves have grey non-stick PTFE coating for diameters from DA 16 to DA 125 mm. For weldings on buildings sites or in workshop, a different holders and storage racks are available.
| Machine type | WIDOS MH 0090T | WIDOS MH 0090E | WIDOS MH 0160T | WIDOS MH 0160E |
| Range in mm | 16 - 90 | 16 - 90 | 16 - 125 | 16 - 125 |
| Number of fastening positions | 1 | 1 | 1 | 1 |
| Thermostatic regulation | ||||
| Electronic regulation | ||||
| Power supply | 230 V / 630 W | 230 V / 630 W | 230 V / 1150 W | 230 V / 1150 W |
| Heating sleeves | ||||
| Heating sleeves DA 16 | ||||
| Heating sleeves DA 20 | ||||
| Heating sleeves DA 25 | ||||
| Heating sleeves DA 32 | ||||
| Heating sleeves DA 40 | ||||
| Heating sleeves DA 50 | ||||
| Heating sleeves DA 63 | ||||
| Heating sleeves DA 75 | ||||
| Heating sleeves DA 90 | ||||
| Heating sleeves DA 110 | ||||
| Heating sleeves DA 125 | ||||
| Accessories | ||||
| Fastening clamp for table | optional | optional | optional | optional |
| Floor rack | optional | optional | optional | optional |
| Steel case | optional | optional | optional | optional |
